Industrial and commercial buildings require good, powerful lighting systems with the capability of illuminating large spaces. Due to its excellent performance and energy consumption rating, the UFO high bay light has become the popular choice of factories, warehouses, gyms, and retail stores. All the information you need about these high-tech lighting fixtures is discussed in this comprehensive guide.

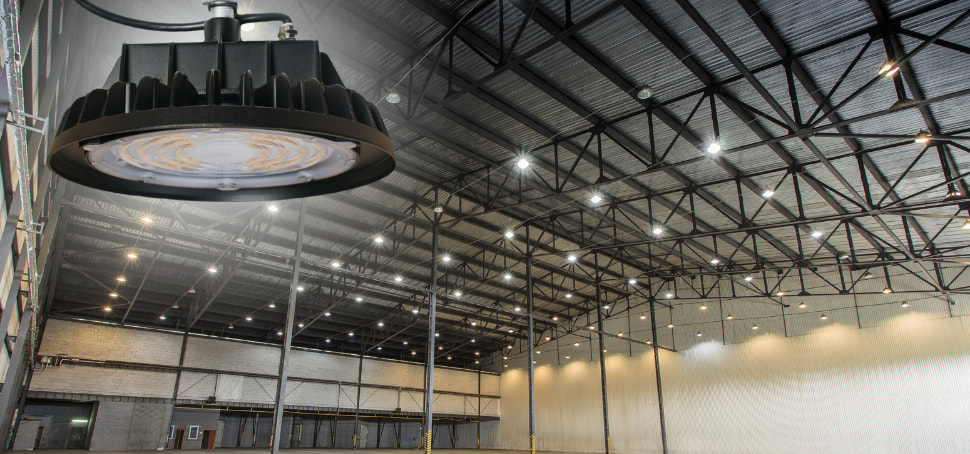

What is a UFO High Bay Light?
UFO high bay light is a circular disc-shaped lighting pole manufactured specifically to saturate areas where the height of the ceiling is high. This type of lighting, which earns its name after its unique looks of a round shape, with a shape of a saucer, is excellent lighting for places with a height of ceiling height of between 15 and 40 feet. One of the most common choices of medium and large business areas comes in the 150W UFO LED high bay, and the power comes with power ranging between 100W to 240W.
Due to the ability of the innovative design to distribute light in 360 degrees, large areas are equally accessible. The UFO high bay lights are instant-on, have a considerably longer running life, and consume a much smaller amount of energy than the conventional metal halide or fluorescent fixtures.
Key Features and Benefits of UFO High Bay Lights
Energy Efficiency and Cost Savings
The UFO LED high bay areas can employ a lower degree of energy compared to a typical high-pressure sodium or metal halide lighting, up to 70 percent. A conventional 150W UFO LED high bay can be substituted with a 400W metal halide lamp while producing an equivalent or even higher amount of light output. This makes the process save time in getting back the investments and large economy in electricity bills.
When used at a normal 50,000 square foot warehouse center, LED high bay lights would reduce energy expenses in a company by up to 30,000 dollars and up to 100,000 annually and up, the U.S. Department of Energy reports.
Superior Light Quality and Distribution
With a high bay light with sophisticated LED chip design, there is little shadowing or glare as the light is evenly distributed. These fixtures enable workers and security cameras to view clearly because they normally yield between 140-160 lumens per watt. Due to a large coverage area of the wide beam angle (e.g., 120-140 degrees), a smaller number of fixtures are used.
Long Lifespan and Durability
Good quality of UFO high bay lights has a recommended average of 50,000-100,000+ hours life span compared to other conventional lighting, which is 5-10 times longer than other lighting. This increased life span reduces stoppage in business activities and reduces their maintenance expenses. The strong aluminum case and hardened glass lens protect against dust, moisture, and impact damage very well.
Types and Wattage Options
Standard Wattage Classifications
The UFO high bay lights have different wattages, which allow meeting different space needs:
- 100W: Ideal for smaller warehouses and retail spaces (8,000-12,000 sq ft)
- 150W UFO LED high bay: Perfect for medium-sized facilities (12,000-18,000 sq ft)
- 200W: Suitable for large warehouses and manufacturing facilities (18,000-25,000 sq ft)
- 240W: Designed for extra-large spaces and high-ceiling applications (25,000+ sq ft)
Mounting Options and Installation Methods
UFO LED high bay fixtures have great flexibility as far as installation is concerned:
Pendant Mounting: employing stiff stems to secure a particular position and a professional look in a retail store or showroom setup.
Hook Mounting: The most utilized one involves aircraft cables or chains that are used to hang and install them. This gives easy access to maintenance and good distribution of light.
Surface Mounting: The panels are mounted directly to the ceiling surfaces and are best suited in cases when the height of the ceilings is too low to have a suspended mounting alternative, or it is undesirable or uneconomical to attach the panels by the use of suspended mounting.
Technical Specifications and Performance Standards
Light Output and Efficiency Metrics
Modern UFO high bay lights deliver impressive performance specifications:
- Luminous efficacy: 140 to 160 lumens per watt
- You can choose between 3000K, 4000K, 5000K, and 6500K for color temperature.
- Color Rendering Index (CRI): 80 or higher for very good color accuracy
- Power factor: >0.95 for the best use of electricity
- Total harmonic distortion: <15% for clean power consumption
Safety and Compliance Certifications
Quality UFO high bay lights meet stringent safety standards:
- UL Listed for electrical safety
- DLC Premium certification for energy efficiency
- IP65 rating for dust and moisture protection
- FCC compliance for electromagnetic interference
- Five-year manufacturer warranty coverage
Installation and Placement Guidelines
Optimal Mounting Heights
For maximum efficiency, UFO LED high bay fixtures should be installed at appropriate heights:
- 15-20 feet: Use 100W-150W fixtures with 90-degree beam angles
- 20-30 feet: 150W UFO LED high bay with 120-degree beam angles works best
- 30-40 feet: 200W-240W fixtures with wider beam angles for coverage
Spacing Calculations and Layout Planning
Appropriate spacing will ensure that the light is well distributed and eliminates raised spots. As a rule, fixtures are installed 1.5 times higher than the point of fastening. In the case of a 20-foot high ceiling, it should have UFO high bay lights, which are spaced at about 30 feet apart. Such a spacing can vary depending on the angle of the beam and the amount of lumen output of the fixtures that you select.
Energy Efficiency and Environmental Impact
Comparative Energy Analysis
UFO high bay lights significantly outperform traditional lighting technologies:
- LED vs. Metal Halide: 65-70% energy savings
- LED vs. High-Pressure Sodium: 60-65% energy savings
- LED vs. Fluorescent: 50-55% energy savings
Changing 50 metal halide fixtures to 150W UFO LED high bay lights can save a facility about 15,000 to 20,000 kWh per year and cut its carbon footprint by 10 to 15 tons of CO2 equivalent.
Return on Investment Calculations
The initial cost of UFO LED high bay lights usually pays for itself in 2 to 4 years because they use less energy and require less maintenance. Businesses can figure out their return on investment (ROI) by looking at things like current electricity rates, hours of operation, and maintenance costs.
Maintenance and Troubleshooting
Routine Maintenance Requirements
UFO high bay lights require minimal maintenance compared to traditional fixtures:
- Clean lens surfaces quarterly to maintain optimal light output
- Inspect mounting hardware annually for secure connections
- Check electrical connections during routine facility inspections
- Monitor light output levels and replace fixtures showing significant degradation
Common Issues and Solutions
Most UFO LED high bay problems stem from installation or power supply issues:
- Flickering lights: Check driver compatibility and voltage stability
- Reduced light output: Clean the fixture lens and inspect for LED chip degradation
- Complete fixture failure: Verify electrical connections and driver functionality
Cost Analysis and Budget Considerations
Initial Investment vs. Long-term Savings
While UFO high bay lights have higher upfront costs than traditional fixtures, the total cost of ownership is significantly lower:
- Average fixture cost: $80-250, depending on wattage and features
- Installation costs: $50-100 per fixture for professional installation
- Annual energy savings: $100-300 per fixture, depending on usage patterns
Financing and Incentive Programs
Many utilities and government agencies offer rebates and financing programs for LED lighting upgrades:
- Utility rebates: $25-75 per UFO LED high bay fixture
- Federal tax deductions: Up to $1.80 per square foot for qualifying efficiency improvements
- State and local incentives: Vary by location, but can provide additional savings
Future Trends and Technology Developments
Smart Lighting Integration
Smart controls and IoT connectivity are built into next-generation UFO high bay lights:
- Sensors that tell when people are in a room to turn things on and off automatically
- Daylight harvesting to adjust brightness based on natural light
- Wireless networking for centralized control and monitoring
- Integration with building management systems
Advanced LED Technology
Emerging technologies continue to improve UFO LED high bay performance:
- Chips with higher efficacy that reach 200+ lumens per watt
- Tunable white technology to help with circadian rhythms, Better thermal management for a longer lifespan
- Better color rendering for more comfortable viewing
Frequently Asked Questions
UFO High Bay Light
How many UFO high bay lights do I need to light up my warehouse?
The number depends on how big your space is, how high your ceiling is, and how much light you want. For good lighting, you’ll usually need one UFO high bay light for every 400 to 600 square feet. A lighting expert can do a detailed calculation based on what you need.
Are UFO LED high bay lights compatible with current electrical systems?
Most UFO high bay lights are made to work with normal 120V–277V electrical systems. They can often be used to replace old fixtures without having to change the electrical connections. However, you may need to remove or bypass old ballasts from fluorescent systems.
What do the color temperatures 4000K and 5000K mean?
4000K gives off a neutral white light that works well for most things. 5000K, on the other hand, looks cooler and more like daylight. 150W UFO LED high bay lights at 5000K are popular in factories and other places where good vision is very important.
Do UFO high bay lights need special controls to dim?
UFO LED high bay lights need LED drivers and dimming controls that work with them. If you need dimmable fixtures, make sure to ask for them. For commercial use, the most common option is 0–10V dimming.
How long should I expect the warranty to last on UFO high bay lights?
Most good UFO high bay lights come with warranties that last 5 to 10 years and cover both the LED chips and the drivers. This warranty protection is very important for making sure that your investment is safe and will last for a long time.
